Build GPS Receiver: A Comprehensive Guide
Introduction
Navigating the world today relies heavily on Global Positioning Systems (GPS), making GPS receivers an essential tool in our daily lives. From smartphones to cars, these devices accurately pinpoint our location, providing invaluable assistance in determining routes, tracking movements, and much more. If you're eager to delve into the inner workings of these remarkable devices, this comprehensive guide will empower you with the knowledge to build your own GPS receiver.
What is a GPS Receiver?
A GPS receiver is an electronic device that receives and interprets signals transmitted by GPS satellites orbiting Earth. These satellites broadcast data containing their precise location and time information. The receiver uses this data to calculate its own position, speed, and time, based on the time it takes for the signals to travel from the satellites to the receiver.
How to Build a GPS Receiver
Building a GPS receiver involves several steps:
1. Gather Components:
- GPS module with antenna
- Microcontroller (e.g., Arduino)
- Display (e.g., LCD or OLED)
- Power supply (e.g., battery)
2. Connect Components:
- Wire the GPS module to the microcontroller's serial or SPI interface.
- Connect the display to the microcontroller's digital pins.
- Connect the power supply to the microcontroller and GPS module.
3. Program Microcontroller:
- Write a program for the microcontroller that:
- Initializes the GPS module.
- Reads data from the GPS module.
- Parses the data to extract location and time information.
- Displays the information on the screen.
Types of GPS Receivers
Stand-Alone Receivers:
- Dedicated devices used primarily for navigation and tracking.
- Offer high accuracy and feature-rich functionality.
- Example: Garmin GPSmap series
Integrated Receivers:
- Built into other devices, such as smartphones, tablets, and laptops.
- Smaller and more portable than stand-alone receivers.
- Example: Apple iPhone GPS receiver
Applications of GPS Receivers
Navigation:
- Provides real-time location information for navigation apps and systems.
- Allows users to determine routes, track their progress, and find their way to destinations.
Tracking:
- Used to monitor the movement of vehicles, people, and assets.
- Provides insights into location history, travel patterns, and safety.
GPS Receiver Features
Accuracy:
- Measured in meters, indicates the closeness of the receiver's calculated position to the true location.
- Factors affecting accuracy include satellite visibility, signal quality, and environmental conditions.
Sensitivity:
- The ability to receive and process signals from low-power satellites.
- Important for urban areas or areas with obstructed satellite views.
Sub-headings with Embedded HTML Images
GPS Receiver Module

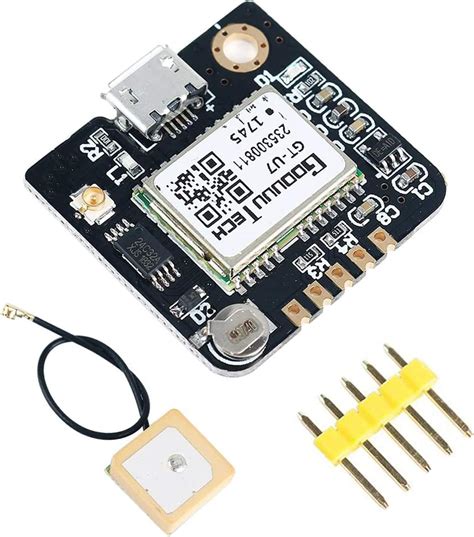

The GPS receiver module is the heart of the device, responsible for receiving and interpreting GPS signals. Typically, a small PCB (printed circuit board) houses the GPS receiver chip, antenna, and other necessary components.
Microcontroller
The microcontroller acts as the brain of the GPS receiver. It controls the flow of data, processes the received signals, and manages the display and other functionalities. Arduino, Raspberry Pi, and STM32 microcontrollers are popular choices for GPS receiver projects.
Display

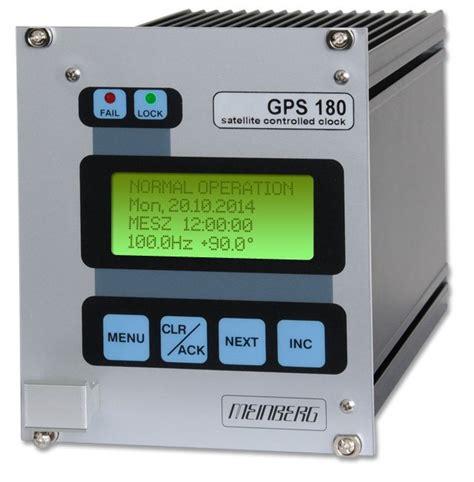

The display provides visual feedback to the user, displaying location, speed, time, and other relevant information. LCD (liquid crystal display) and OLED (organic light-emitting diode) displays are commonly used in GPS receivers.
Tips for Building a GPS Receiver
- Use a high-quality GPS module with a strong signal reception.
- Ensure a clear view of the sky for optimal satellite visibility.
- Calibrate the receiver periodically to maintain accuracy.
- Consider using an external antenna for improved performance.
Troubleshooting GPS Receiver Issues
- Weak signal: Check antenna connections and ensure clear satellite visibility.
- Inaccurate readings: Recalibrate the receiver or check for interference from nearby electronic devices.
- No power: Verify power connections and replace batteries if necessary.
FAQs
1. What is the range of a GPS receiver?
- Typically, GPS receivers can receive signals from satellites up to 20,200 kilometers (12,600 miles) above Earth.
2. How does a GPS receiver calculate its location?
- The receiver measures the time it takes for signals to travel from at least four satellites. Using this information and known satellite positions, it triangulates its own position.
3. What are the limitations of GPS receivers?
- GPS signals can be blocked or degraded by dense foliage, buildings, and other obstacles. Indoor navigation and precise positioning under challenging environmental conditions can be challenging.
4. Can I build a GPS receiver using only a smartphone?
- Yes, many smartphones have built-in GPS receivers. However, external GPS modules can provide better accuracy and performance.
5. What are the main components of a GPS receiver?
- GPS module, microcontroller, display, power supply, and antenna.
6. How do I calibrate a GPS receiver?
- Refer to the manufacturer's instructions for calibration procedures. Usually, it involves collecting data while stationary and providing a known location as a reference.
7. Can I use a GPS receiver to track my pet?
- Yes, GPS-enabled pet trackers are available for this purpose. They attach to the pet's collar and transmit location data to a smartphone app.
8. How accurate are GPS receivers?
- Accuracy can vary depending on factors such as satellite visibility, signal quality, and receiver design. Typically, GPS receivers can provide accuracy within a few meters.
9. What is the difference between GPS and GLONASS?
- GLONASS is a Russian satellite navigation system similar to GPS. Using both GPS and GLONASS can improve accuracy and signal availability.
10. Can I build a GPS receiver with a Raspberry Pi?
- Yes, the Raspberry Pi can be used to build a GPS receiver using an external GPS module and appropriate software.
Conclusion
Building a GPS receiver is a fascinating and rewarding project, providing valuable insights into the principles of satellite navigation. By following the steps outlined in this guide, you can embark on a journey of creating your own fully functional GPS device. Remember to prioritize signal reception, ensure proper calibration, and enjoy the satisfaction of navigating the world with your custom-built GPS receiver.
